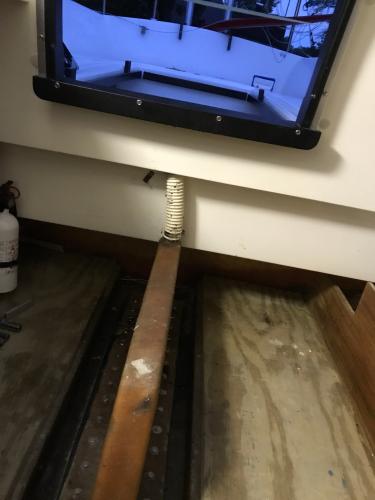

This may not help much, it shows the sole partially removed from a v berth
perspective.    The bilge hatch sits between the stingers just in front of
the centerboard cap and goes up to the battery compartment and head area.
I can measure it tomorrow, thunderstorms allowing.



-----
Alex Cole
S/V Lark
--
