Reuben,

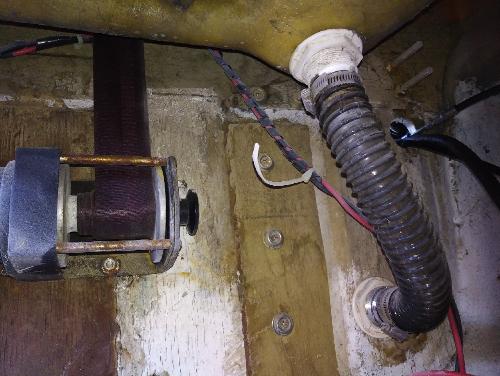

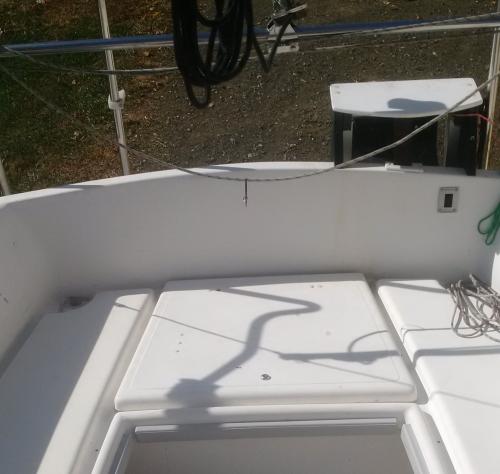

My Rhodes has a DBDT switch mounted on the transom. Photos show the switch
on the transom, wires in the lazarette and the connection to the bus on the
port side that also supplies power to the starter for the auxiliary from #2

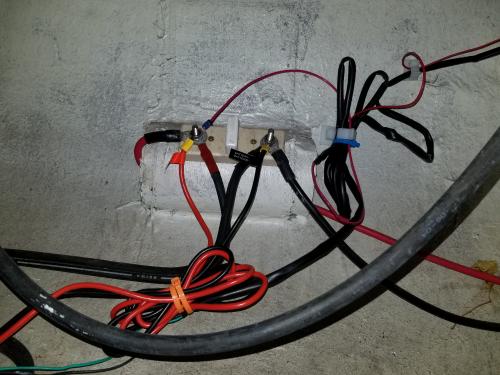

Battery located under the port seating inside the companionway. The photo
showing the connection "Winch Wiring" is from the List and is not my
installation but is a much clearer depiction. The photo

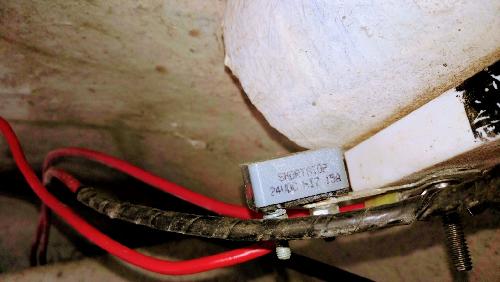

"Power Bus with Relay" may be somewhat confusing, but shows the relay.




-----
Joe Dempsey
s/v Respite
Rhodes 22 1989/2005
Deltaville,VA
--
